Understanding Support Vector Machine (SVM) Algorithm in Deep Learning: A Quick Overview

Introduction

In the rapidly evolving field of artificial intelligence and machine learning, Support Vector Machines (SVM) stand as one of the most effective and popular algorithms for classification tasks. Although originally designed for binary classification, SVM has found widespread application across various domains due to its versatility. While deep learning methods have garnered attention in recent years, SVM still maintains a unique position in certain scenarios, making it a critical tool for machine learning enthusiasts to understand.

This article provides a quick overview of how the SVM algorithm works, its advantages and limitations, applications, and its role in the future of deep learning.

How the Support Vector Machine Algorithm Works

At its core, Support Vector Machine is a supervised learning algorithm primarily used for classification, though it can also be extended to regression tasks. The primary goal of SVM is to find a hyperplane that best separates data points into distinct classes. Here’s a breakdown of the steps involved:

1. Linear Separation: In a basic two-dimensional space, SVM identifies a straight line (hyperplane) that separates data into two distinct groups. The idea is to maximize the margin between this hyperplane and the nearest data points from either class — these are known as the “support vectors.”

from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score

# Load a dataset (e.g., Iris)
iris = datasets.load_iris()
X, y = iris.data, iris.target

# Use only two classes for binary classification
X, y = X[y != 2], y[y != 2]

# Split the data
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# Create and train the SVM model with a linear kernel
svm_linear = SVC(kernel='linear')
svm_linear.fit(X_train, y_train)

# Predict and calculate accuracy
y_pred = svm_linear.predict(X_test)
print(f"Linear SVM Accuracy: {accuracy_score(y_test, y_pred):.2f}")

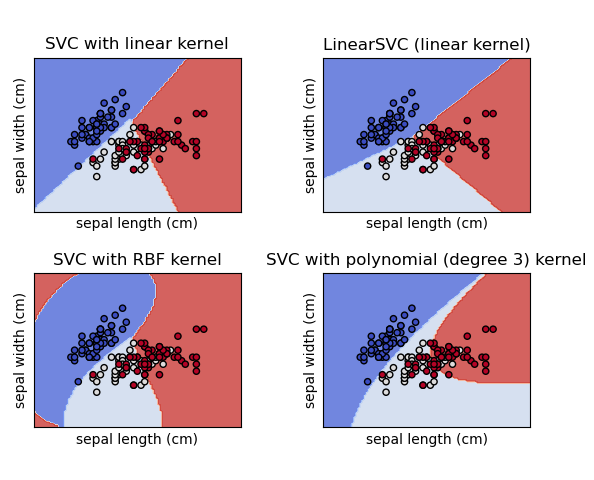

2. Non-linear Separation: For more complex datasets where a straight line cannot separate the classes, SVM employs a technique called the kernel trick. The kernel trick transforms the original data into a higher-dimensional space where linear separation becomes possible. Popular kernel functions include polynomial, radial basis function (RBF), and sigmoid kernels.

# Create and train the SVM model with RBF kernel for non-linear separation
svm_rbf = SVC(kernel='rbf')
svm_rbf.fit(X_train, y_train)

# Predict and calculate accuracy
y_pred_rbf = svm_rbf.predict(X_test)
print(f"Non-linear SVM (RBF Kernel) Accuracy: {accuracy_score(y_test, y_pred_rbf):.2f}")

3. Optimal Hyperplane: The algorithm iterates to find the hyperplane that maximizes the margin, ensuring that the classes are as far apart as possible. This optimal boundary minimizes the chance of misclassification for new data points.

from sklearn.model_selection import GridSearchCV

# Define parameter grid
param_grid = {'C': [0.1, 1, 10, 100], 'gamma': [1, 0.1, 0.01, 0.001], 'kernel': ['rbf']}

# Perform Grid Search
grid = GridSearchCV(SVC(), param_grid, refit=True, verbose=2)
grid.fit(X_train, y_train)

# Predict using the best found model
y_pred_grid = grid.predict(X_test)
print(f"Optimized SVM Accuracy: {accuracy_score(y_test, y_pred_grid):.2f}")

Advantages and Limitations of SVM

Advantages:
1. Effective in High-dimensional Spaces: SVM excels in situations where the number of features exceeds the number of data points, as it focuses on identifying the support vectors that define the decision boundary.

2. Versatility with Kernels: The kernel trick allows SVM to handle non-linear data, making it adaptable to a wide range of complex classification problems.

3. Robustness to Overfitting: By maximizing the margin, SVM tends to be more robust against overfitting, especially in high-dimensional spaces.

4. Efficient for Small Datasets: SVM performs well on smaller datasets, where deep learning models may struggle to achieve accurate results due to lack of data.

Limitations:
1. Computationally Intensive: SVM can become computationally expensive when applied to large datasets, particularly in cases where the number of samples exceeds tens of thousands.

2. Inefficient with Noisy Data: SVM is sensitive to noisy data, especially when there is overlapping of classes, as it relies heavily on the support vectors. In such cases, tuning is crucial.

3. Difficulty in Choosing the Right Kernel: The performance of SVM depends significantly on the choice of the kernel. Selecting the wrong kernel can lead to poor model performance.

Applications of SVM

1. Image Classification: SVM has been widely used for image recognition tasks, where it classifies objects or facial recognition in images.

2. Text and Hypertext Categorization: SVM is commonly applied in natural language processing (NLP) tasks, such as spam detection, document classification, and sentiment analysis.

3. Bioinformatics: SVM has been utilized to classify biological data, such as in cancer diagnosis, gene classification, and protein structure prediction.

4. Handwriting Recognition: SVM is employed to identify characters and digits from handwritten documents, such as in optical character recognition (OCR) systems.

        ###Image Classification

# Example of applying SVM for image classification using the MNIST dataset
from sklearn.datasets import fetch_openml
from sklearn.preprocessing import StandardScaler

mnist = fetch_openml('mnist_784')
X, y = mnist['data'], mnist['target']

# Standardize features for better performance
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X.astype(float))

# Train on a subset due to computational expense
X_train, X_test, y_train, y_test = train_test_split(X_scaled, y, test_size=0.1, random_state=42)

# Train an SVM with RBF kernel
svm_mnist = SVC(kernel='rbf', C=10, gamma=0.01)
svm_mnist.fit(X_train[:10000], y_train[:10000])  # Subset to speed up training

# Predict and evaluate
y_pred_mnist = svm_mnist.predict(X_test[:1000])
print(f"MNIST SVM Accuracy: {accuracy_score(y_test[:1000], y_pred_mnist):.2f}")

        ###Text Classification with NLP

# Example of using SVM for spam detection (text classification)
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.datasets import fetch_20newsgroups

# Load dataset and vectorize text
categories = ['sci.space', 'rec.autos']
newsgroups = fetch_20newsgroups(subset='train', categories=categories)
vectorizer = TfidfVectorizer()

X = vectorizer.fit_transform(newsgroups.data)
y = newsgroups.target

# Split data and train SVM
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

svm_nlp = SVC(kernel='linear')
svm_nlp.fit(X_train, y_train)

# Predict and evaluate
y_pred_nlp = svm_nlp.predict(X_test)
print(f"Text Classification Accuracy: {accuracy_score(y_test, y_pred_nlp):.2f}")

While deep learning models, particularly neural networks, have outshined traditional machine learning algorithms in many domains, SVM remains relevant for specific tasks due to its effectiveness in handling small datasets and its generalization capabilities in high-dimensional spaces. In areas where interpretability, speed, and robustness matter, SVM can still outperform more complex models.

Moreover, SVM is often used in tandem with deep learning techniques. For example, SVM classifiers are sometimes applied to the feature outputs of deep neural networks to boost the performance of classification tasks. This combination allows for the leveraging of deep learning’s feature extraction with SVM’s powerful classification capabilities.

In the coming years, SVM’s adaptability through kernel functions and its capacity to generalize well may keep it useful in niche applications where neural networks may not be the most effective solution.

Conclusion

Support Vector Machine, despite being developed decades ago, is still a powerful tool in the machine learning arsenal. Its ability to efficiently classify data in both linear and non-linear scenarios, combined with its robustness in high-dimensional spaces, ensures that it continues to be a viable option for many classification tasks. While deep learning has overshadowed SVM in certain areas, the algorithm’s simplicity and adaptability keep it relevant in modern applications.

For those starting their journey in machine learning, understanding SVM provides a strong foundation for approaching classification problems — whether they’re building smaller models or combining SVM with deep learning for improved performance.

— -

By exploring the concepts behind SVM, its advantages, limitations, and real-world applications, we gain a deeper understanding of why it’s an algorithm worth mastering, even in the age of deep learning.
